Caged Ladders
Safetylyne designs, engineers and manufactures aluminium caged ladders systems in Australia for safe, efficient and compliant access.
Trust your project to our Height Safety Experts.
Cage Ladders
Clear access systems protect people working at height. A well-designed and properly engineered caged ladder gives workers a controlled way to ascend, descend and transition between levels while reducing the risk of a fall and staying compliant.
What are the cage ladder requirements in Australia?
Australian Standards and WHS Regulations outline how fixed ladders must be designed, installed, and maintained. The key documents include:
- AS/NZS 1657: Sets design, construction, installation, and testing requirements for fixed ladders and cages.
- Model WHS Regulations: Require fall protection where the risk of falling from one level to another is reasonably likely.
- State-based codes: Provide additional guidance on ladder stability, access spacing, and safe travel paths.
Australian requirements focus on four areas:
- Fall protection around the full climbing path
- Correct clearances around the ladder and cage
- Proper transition at the top and bottom
- Durable materials and compliant fixings
When is a cage required on a ladder?
A cage becomes mandatory when:
- The climb height exceeds 6 metres.
- The ladder is used for regular access, not emergency use only.
- The ladder is exposed to public or worker traffic where fall consequences are significant.
- The site risk assessment identifies the need for additional fall protection over and above a harness or rail system.
Some assets also specify cages for visual protection, security, or debris shielding.
Types of Caged Ladders:
Different applications require different cage configurations:
Standard caged ladder
A fixed vertical ladder with a fall protection cage running the full height. Used on buildings, tanks, towers and plant equipment.
Modular caged ladder system
A system with interchangeable sections, platforms, fall protection cages and handrails. Ideal for industrial upgrades, water treatment plants and staged installations.

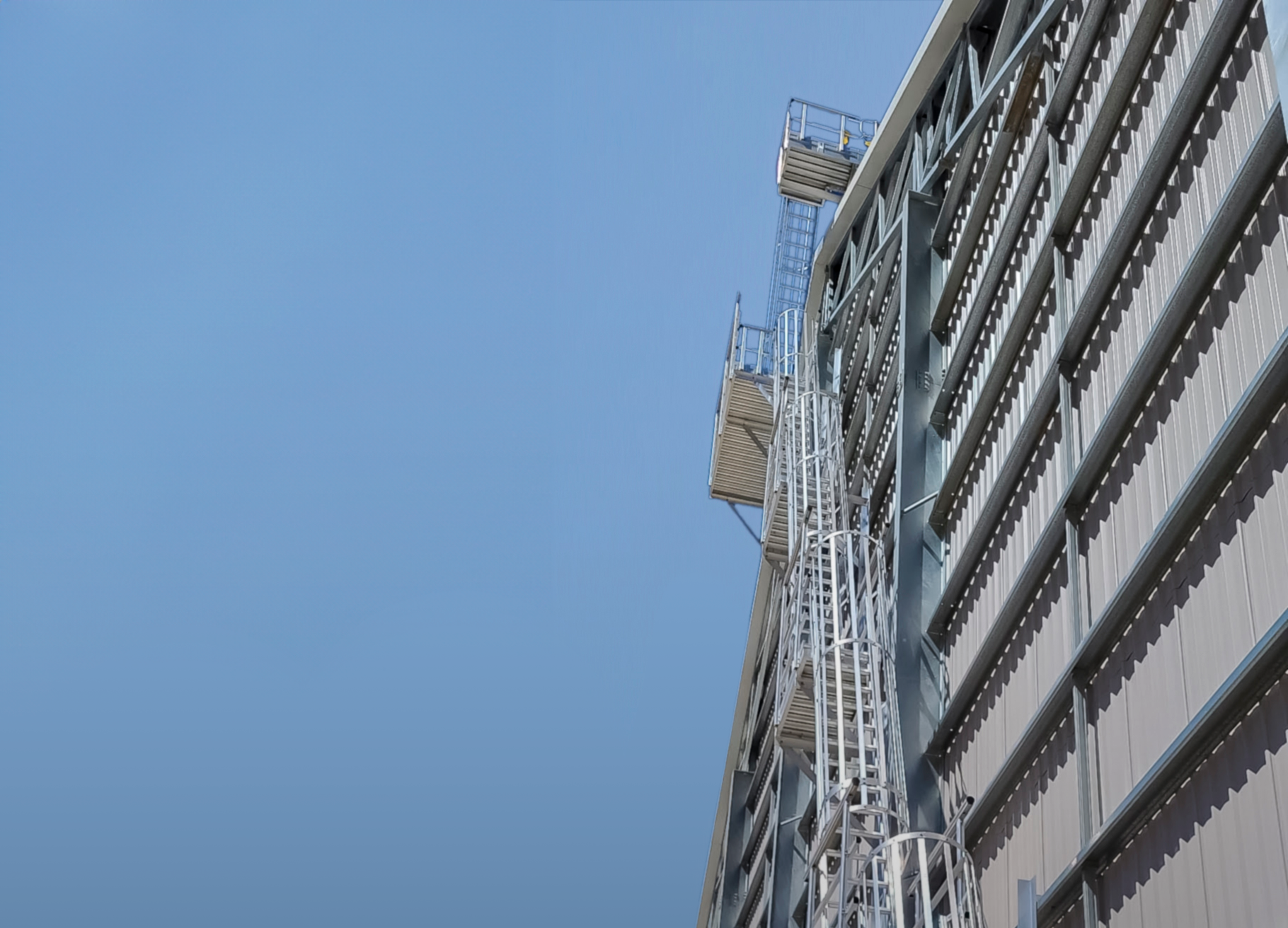

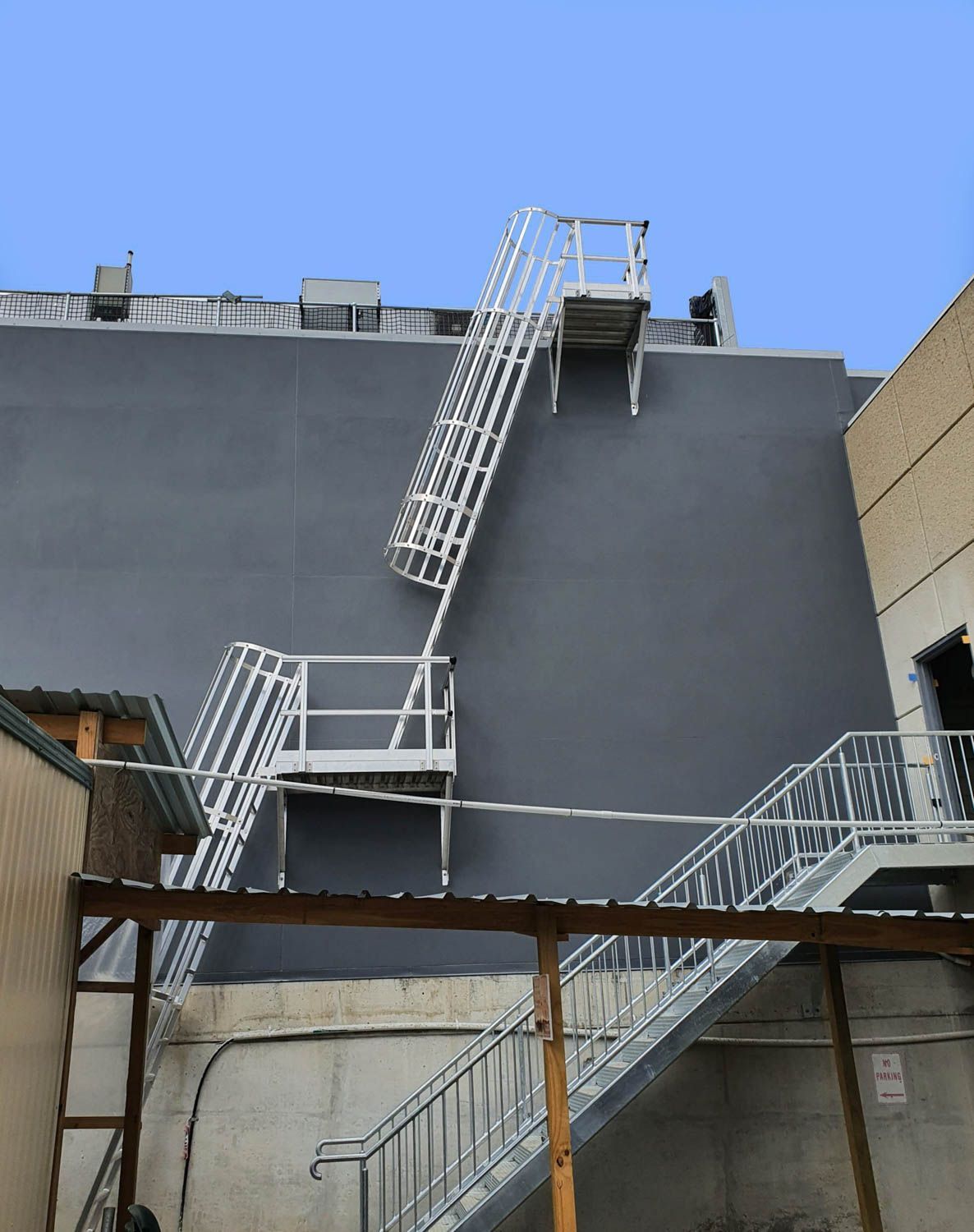

Multi-flight caged ladder
A ladder that incorporates rest platforms between flights to manage fatigue and meet height regulations. Often used on tall structures over 10 metres.

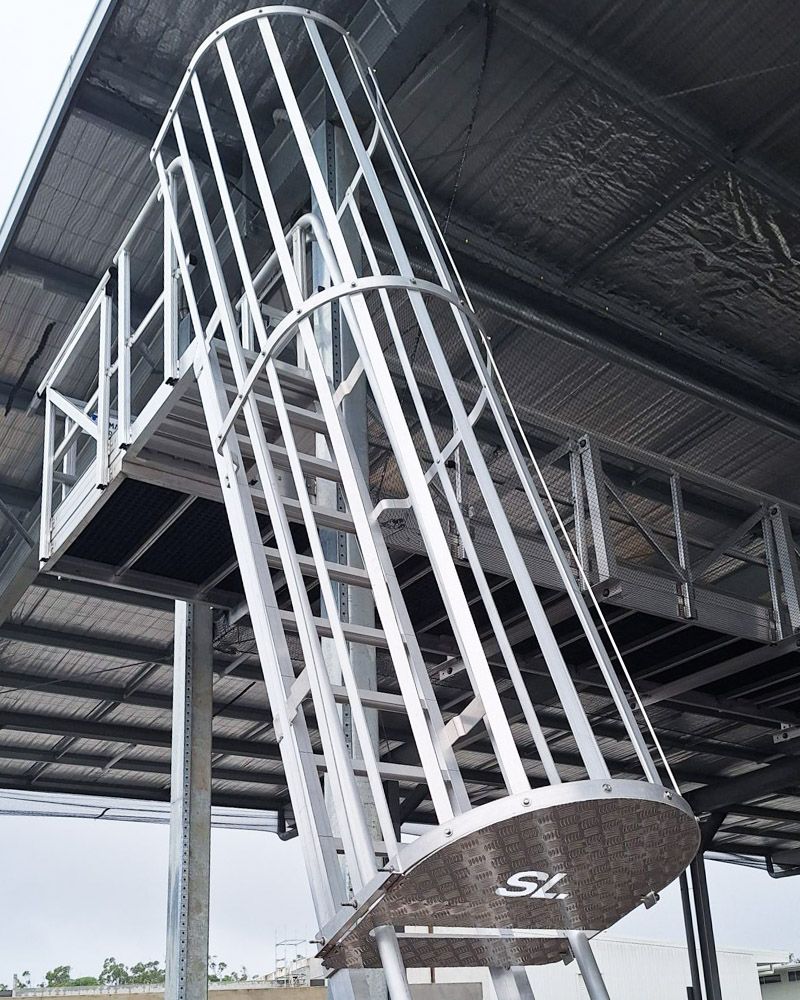

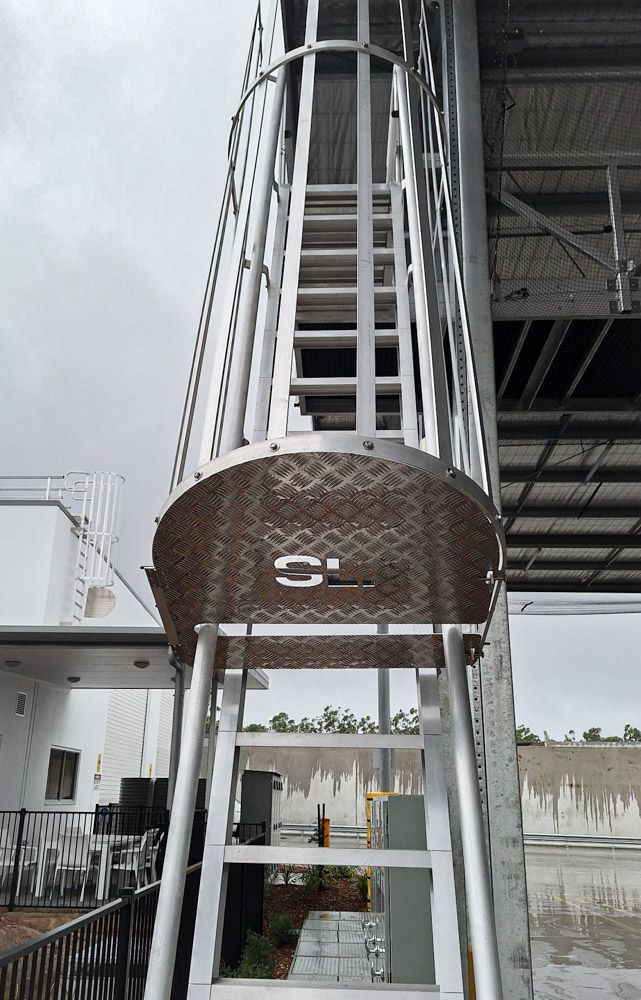

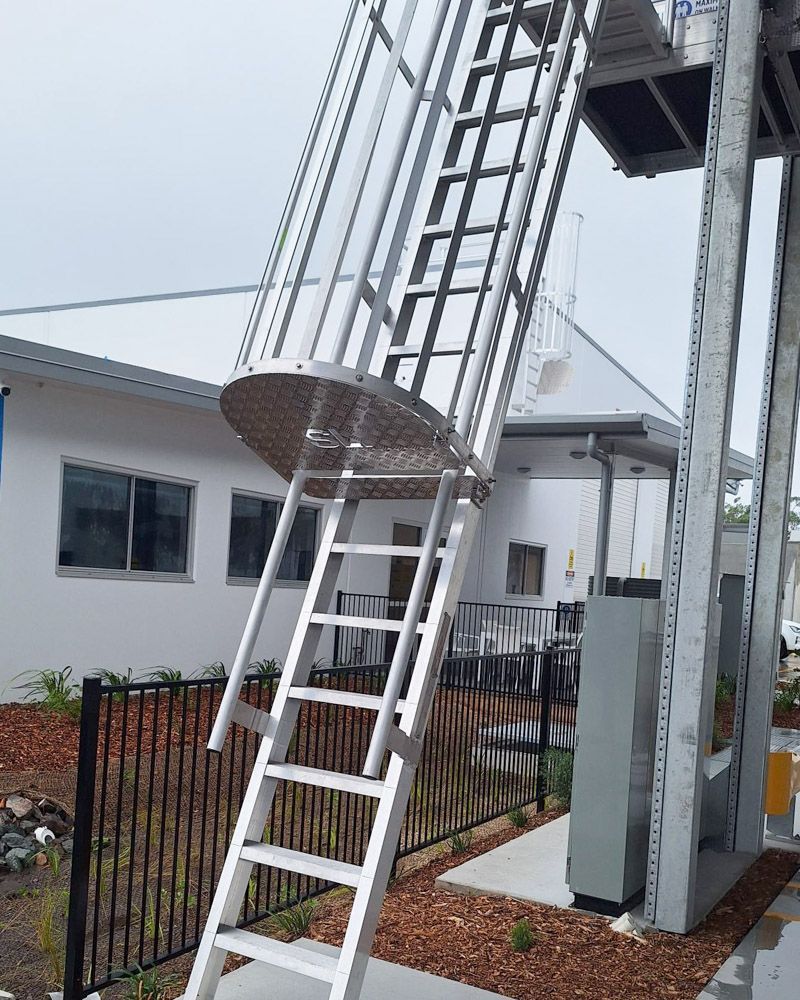

Security-caged ladder
A caged ladder fitted with a lockable entry panel or anti-climb features for asset protection.
Fire egress caged ladder
A reinforced system used as a secondary path of escape. More details sit on the dedicated Fire Escape page, but the key principle is a protected vertical evacuation route that meets local fire authority and building code requirements.
Cage ladder safety requirements
AS/NZS 1657 sets out the main safety principles:
- Minimum internal cage diameter to allow clear movement
- Correct offset from rungs to prevent entrapment
- Cage opening size designed to avoid snag points
- Continuous protection from 2.2 metres above floor level to the top landing
- Smooth internal surface that avoids sharp edges
- Stable anchorage into structural members
- Slip-resistant rungs with minimum dimensions
- Top and bottom access zones kept clear
A compliant system gives workers a predictable environment and reduces fall consequences if a slip occurs.
How does a ladder cage work?
A ladder cage works by creating a controlled envelope around the climber. The cage restricts the body's backward movement, prevents rotation away from the ladder and reduces the distance a person can fall. It stabilises the worker during ascent and descent and offers orientation support during fatigue or adverse conditions. The design does not replace a fall-arrest harness when the site requires one, but it adds a significant layer of passive protection.
Cage ladder standard
The primary reference is AS/NZS 1657: Fixed platforms, walkways, stairways and ladders. It specifies:
- Material thickness
- Bracket spacing
- Internal cage diameter
- Rung dimensions
- Maximum ladder length per flight
- Platform requirements for tall structures
- Required clearances from walls and plant
- Testing criteria for strength and deflection
Designers combine the standard with engineering judgement, site-specific hazard assessments and the building's structural capacity.
Caged ladders for fire escape egress
Caged ladders used for fire escape must allow a fast, unobstructed, and protected path to the ground. Building codes, fire authority directives, and engineering assessments dictate placement, width, materials, and anchorage. These ladders often form part of a broader evacuation system. A standalone Fire Escape Egress page can expand on flame resistance, egress capacity, smoke considerations, and integration with emergency lighting.
Fall protection cage ladder manufacturing and design
A safe system depends on correct design, engineering and fabrication. High-quality caged ladder systems are built around:
- Structural-grade aluminium or steel
- Weather-resistant coatings that support long-term durability
- Engineered brackets and fixings rated for the substrate
- Modular components for straightforward installation
- Accurate dimensional control for cage curvature and rung spacing
- Compliance verification and site testing
Cage ladder manufacturers must deliver systems that integrate with the building structure and provide reliable, predictable performance for the user.
Caged ladder system design
Effective design goes beyond meeting the standard. It considers:
- Asset height, geometry and maintenance patterns
- Clearances around plant and equipment
- Load paths back into the structure
- Worker movement patterns during ascent and descent
- Fall protection hierarchy and other controls in place
- Corrosion exposure, site environment, and lifecycle cost

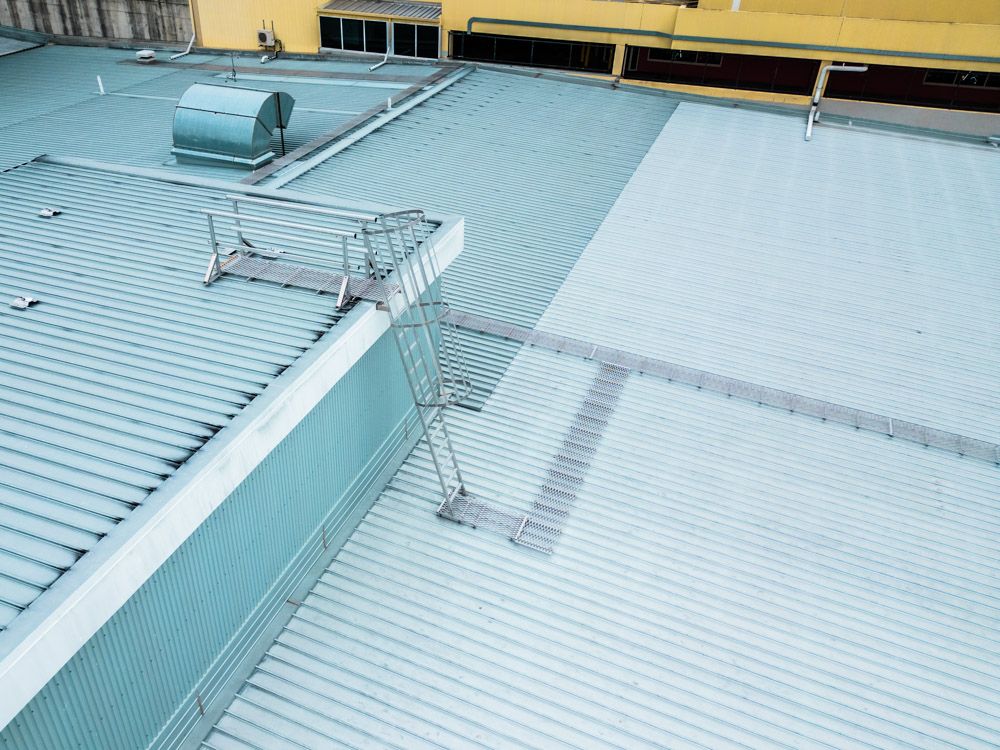

- Integration with platforms, guardrails, gates, and anchor points
The result is a system that supports safe access and efficient maintenance with minimal disruption.
Have a Question?
See how our height safety consultants can help - get in touch with us today.
Contact Us

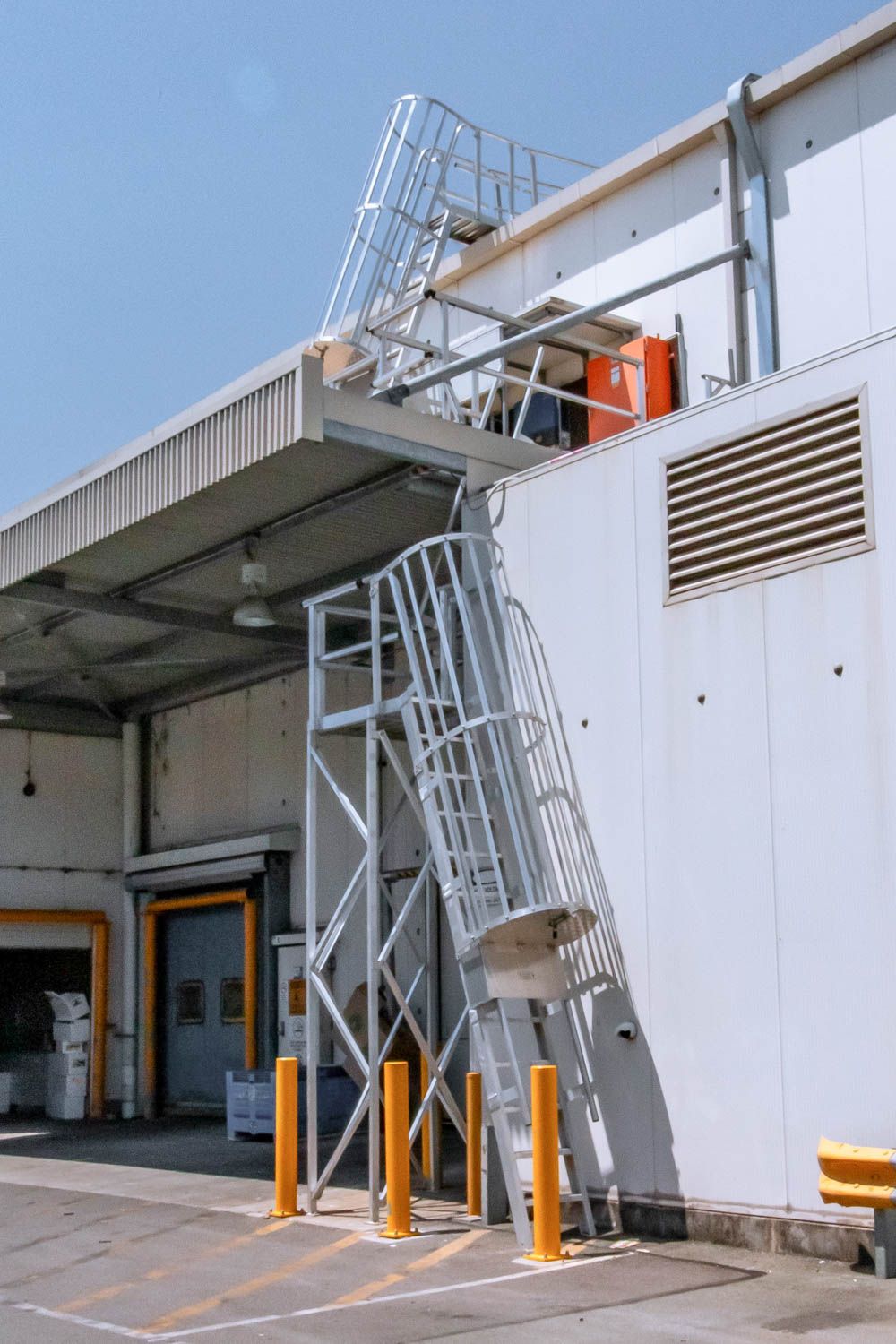

See how our caged ladders and are delivered and installed:
