Self-Retracting Lifelines

What Is a Self-Retracting Lifeline and

How Does It Work in a Complete Safety System?

Working at height is never about a single piece of gear. True safety comes from a complete system.

A self-retracting lifeline (SRL) is one of the most effective tools in fall protection, but only when used as part of an engineered setup.

It is a fall arrest device that links a worker’s harness to a secure connection point. This can be a fixed anchor, an overhead rail, or part of a static line system.

The SRL works like a seatbelt:

The line extends and retracts automatically as the worker moves, keeping it taut and out of the way.

Inside the housing, a spring and braking system control the webbing or cable.

If a sudden fall occurs, the mechanism locks instantly to stop the fall, reducing both distance and impact force.

This mechanism allows freedom of movement while keeping the worker protected at all times.

Benefits of using SRLs:

• Less slack and fewer trip hazards.
• Shorter fall distances.

Why SRLs Need a System

An SRL on its own can give a false sense of security. Its performance depends on the anchor position, the way it’s mounted, and the clearance available below. Without the right setup, even the best SRL may not work as intended.

That’s why SRLs are usually integrated into larger systems:

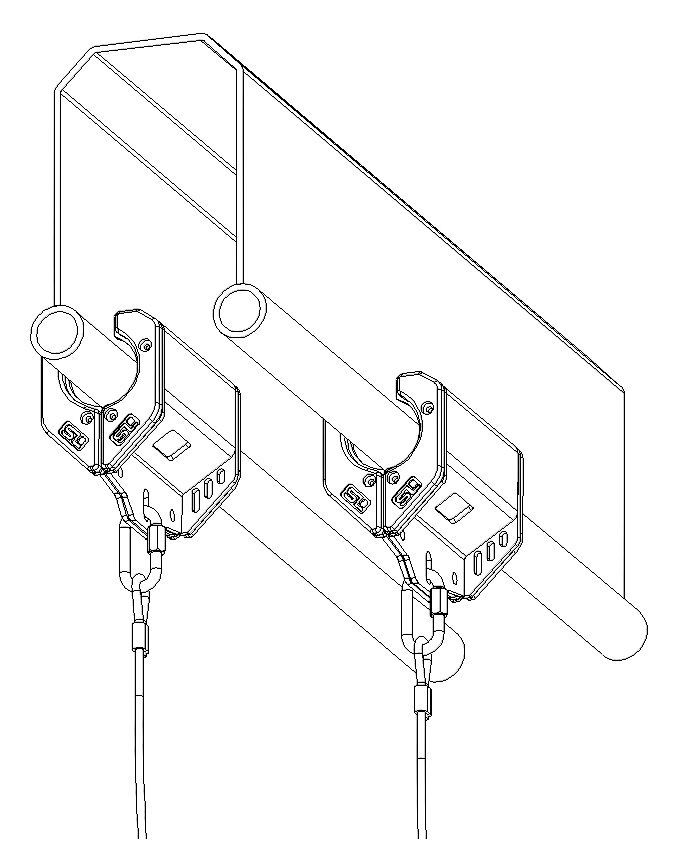

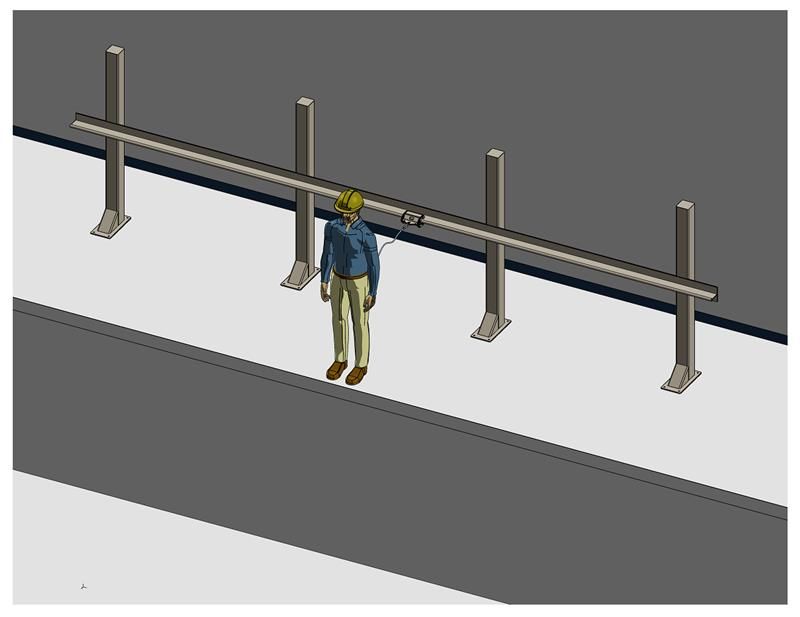

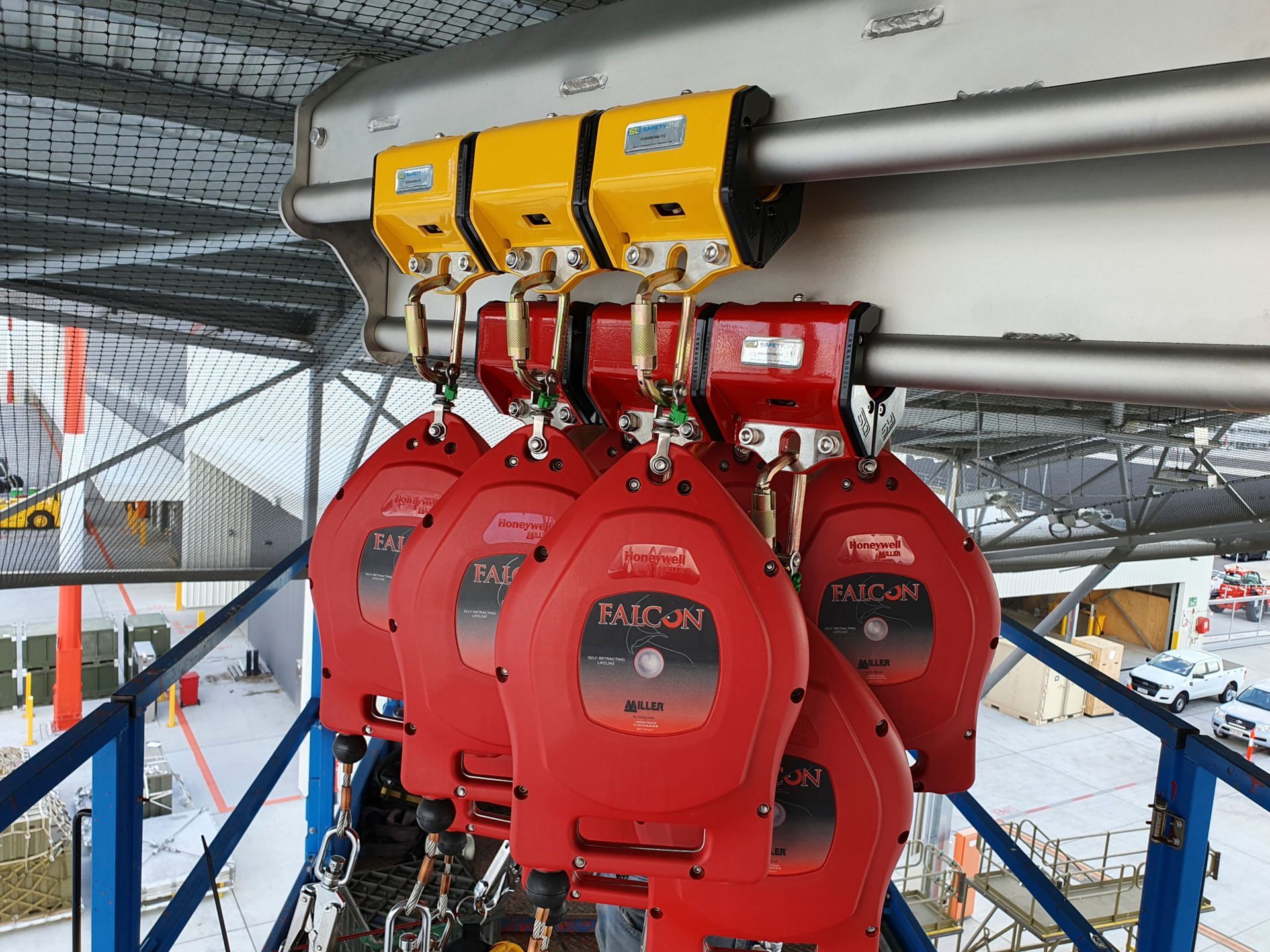

• Overhead rail fall restraint systems – SRLs travel smoothly along the rail and keep workers moving freely.
• Static line systems – SRLs can be combined with static lines to cover long access routes with minimal fall distance.
• Anchor points – Properly engineered anchors make sure SRLs are mounted at the correct height and orientation.

Engineered Design Matters

An SRL is only as safe as the system around it. Poor anchor placement or lack of clearance can turn good equipment into a risk.

What do you have to consider when choosing a self-retracting lifeline fall arrest system:

• Structural load capacity
• Correct anchor position
• Rescue and retrieval planning

It also ensures the setup complies with Australian height safety standards, so the system is not only functional but also legally compliant.

5 Things to Check Before Using a Self-Retracting Lifeline



• Anchor strength.
• Clearance requirements.
• Inspection and maintenance.
• Compatibility with overhead rails or static lines.
• Proper user training.

Why Engineered Design Matters

An SRL is only as safe as the system around it. Poor anchor placement or lack of clearance can turn good equipment into a risk. A well-designed system considers:

• Structural load capacity

• Correct anchor position

• Rescue and retrieval planning

• Compliance with Australian height safety standards

The Bottom Line

A self-retracting lifeline is a smart way to reduce fall risks. But it’s not the full solution. The safest outcomes come from integrating SRLs into complete fall protection systems, overhead rails, static lines, and engineered anchors built for the site.
