Pump Station Access Systems


Pump Station Access Solutions platforms, walkway and other essential safety systems for Water, Wastewater, Mining and Industrial Facilities.


Pump stations demand more from access systems than most industrial assets.

Operators service pumps, check valves, read instrumentation and respond to alarms on a regular cycle - often in below-grade environments with restricted clearance, chemical exposure and limited ventilation.


Safetylyne engineers, manufactures, installs and certifies pump station access systems for water utilities, councils, civil contractors and asset owners across Australia. Every system is designed to the specific asset - valve chamber geometry, structural connections, chemical environment and site configuration, and fabricated in our Australian workshop.

Pump Station Configurations Safetylyne Designs Access For


Safetylyne designs access systems for all pump station types:


pump access platform engineering design and manufacturing

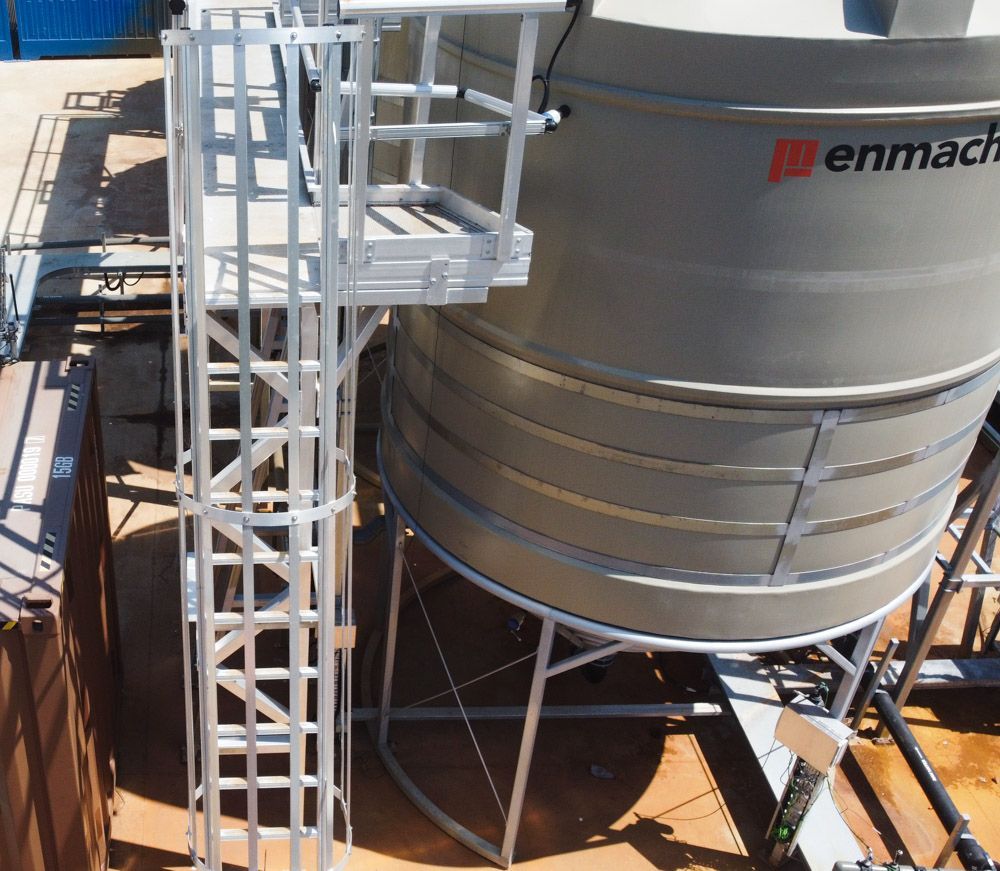

tank access systems and pump station access ladder platforms

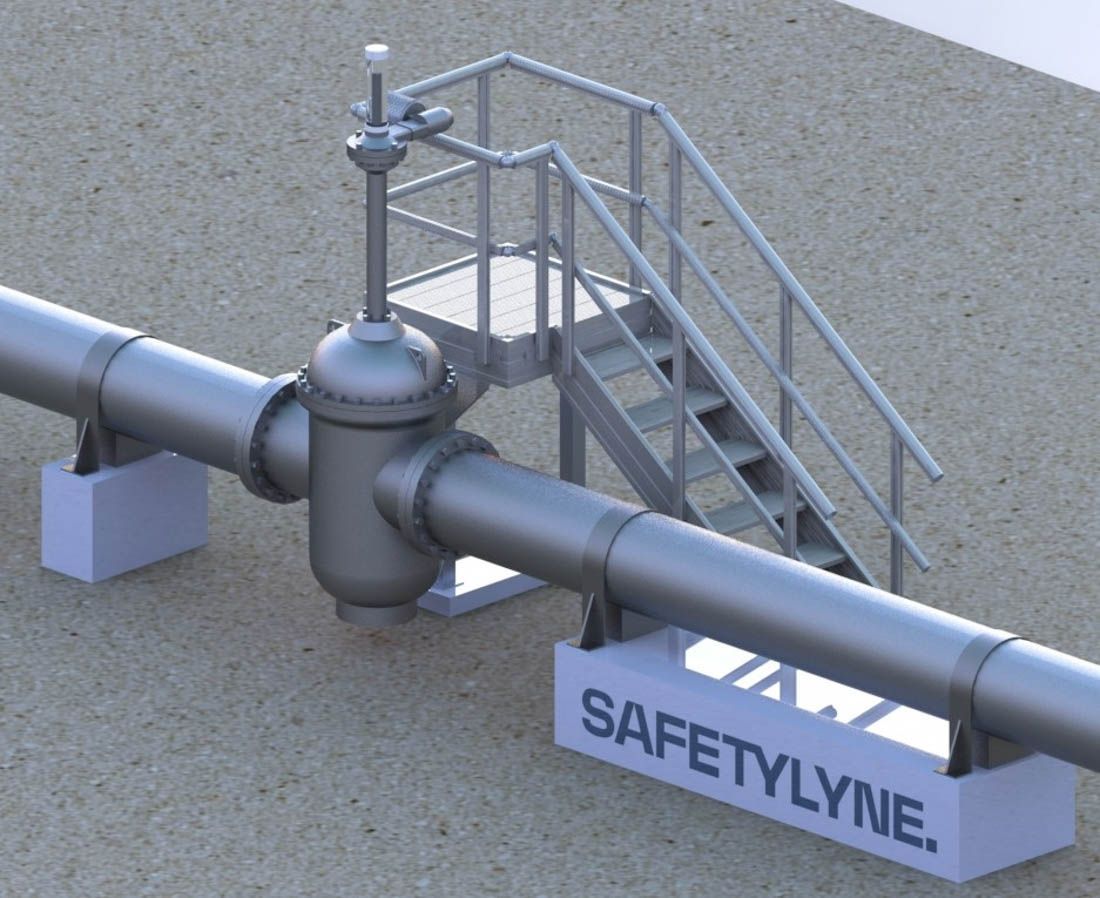

Pump station access platform design and manufacturing

Pump Station Access Platforms


Fixed elevated platforms are the core access solution where operators need a stable, compliant work position above hatches, valve chambers or process equipment.

Safetylyne custom-engineers each platform to the pump station layout - accounting for hatch position, structural fixing points, operational clearances and load requirements. Platform systems include:

  • Single-level platforms at wet well and valve chamber openings
  • Multi-level platforms where pumps or instrumentation sit at different heights
  • Perimeter walkways around above-ground pump station enclosures
  • Gantry platforms over pipework and process equipment
  • Modular platform systems for staged infrastructure upgrades

All platforms fabricated in structural aluminium, designed to AS 1657:2018 and certified on installation.

Corrosion-Resistant Materials and Australian Standards Compliance


Aluminium does not rust, needs no coating maintenance, and performs reliably in humid, chemically active and outdoor pump station environments.

Painted steel corrodes and creates ongoing maintenance obligations that aluminium can avoid.


All systems designed and certified to:

  • AS 1657:2018 - Fixed platforms, walkways, stairways and ladders
  • AS/NZS 1891.4:2009 - Industrial fall arrest systems and devices
  • AS 2865 - Confined spaces
  • AS 1664.1:1997 - Aluminium structures
  • WHS Act and Regulations


Full compliance documentation, as-built drawings and certification on every project.

water pump pipes access bridge platform

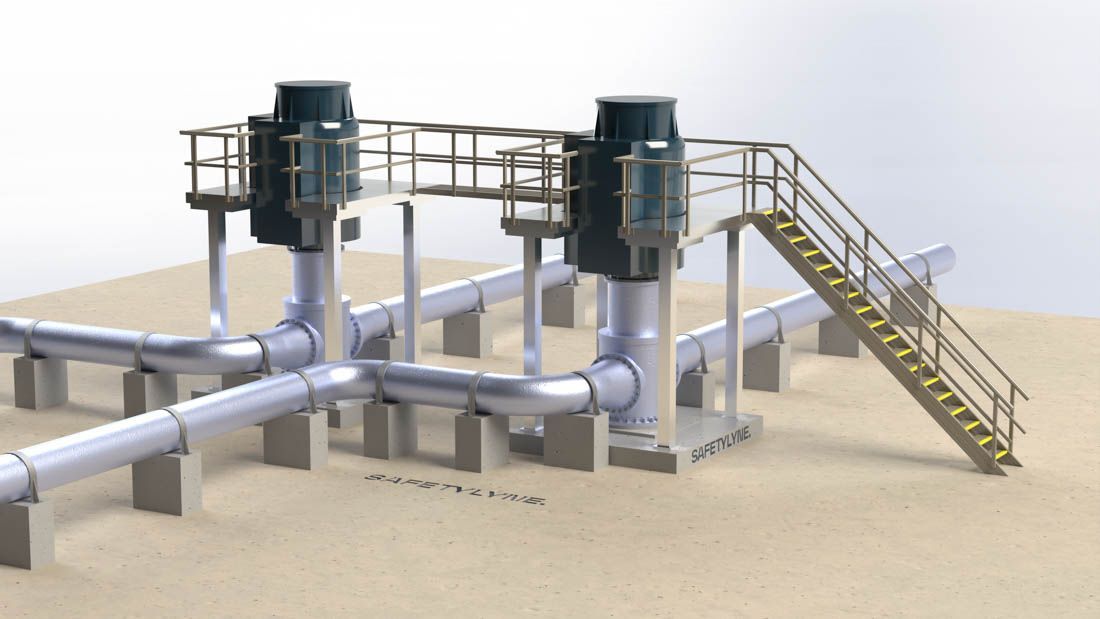

pump station access platform design and installation Australia

Australian Standards and Material Specifications for Water Infrastructure Access


Safetylyne uses structural aluminium throughout its water infrastructure access systems.

Aluminium performs where steel corrodes in humid plant environments, near chlorination and chemical dosing equipment, and on exposed tank and reservoir structures.


It does not require ongoing coating maintenance and carries no risk of contamination from corrosion near potable water assets.


All systems are designed and certified to relevant Australian Standards, including:

  • AS 1657:2018 - Fixed platforms, walkways, stairways and ladders
  • AS 2865 - Confined spaces (where applicable)
  • AS 1664.1:1997 - Aluminium Structures


Work Health and Safety obligations under the WHS Act apply to all permanent access structures. Safetylyne provides full compliance documentation as part of every project delivery.



guardrails non-corrosive design for himd enveironments
Crossover stairs illustration
access stair design sketch
Gantry walkway design drawing for humid enveironments and water treatment plants

Frequently asked questions

WHAT ACCESS SYSTEMS ARE REQUIRED AT A PUMP STATION?
<ul class="rteBlock defaultList"><li>Every pump station has to have a compliant access to each maintenance point - wet well hatches, valve chambers and above-grade plant. </li></ul><br><ul class="rteBlock defaultList"><li>Below-grade openings require fall protection at hatch level, a ladder or stair system suited to the depth, and a retrieval system at each entry point. </li></ul><br><ul class="rteBlock defaultList"><li>Above-grade equipment requires platforms and stairs to AS <a value="/as1657" label="" type="blog_post" href="/as1657" blog_post_id="19007851" sitescopedid="511233f0" data-runtime-url="/as1657">1657:2018. </a>Configuration depends on pump station type, depth, chemical environment and layout.</li></ul>
WHAT IS A PUMP STATION ACCESS PLATFORM?
<ul class="rteBlock defaultList"><li>Pump access platform ia a fixed, engineered structure providing a stable work position above hatches, valve chambers or process equipment. </li></ul><br><ul class="rteBlock defaultList"><li>Platforms can be custom-designed to the pump station layout, load requirements and operational clearances, fabricated in structural aluminium and certified to AS 1657:2018. </li></ul><br><ul class="rteBlock defaultList"><li>Safetylyne designs and installs pump station access platforms for water, wastewater, stormwater, mining and industrial pump stations across Australia.</li></ul>
WHAT IS A DAVIT ARM AND WHY IS IT NEEDED AT A PUMP STATION?
<ul class="rteBlock defaultList"><li>A davit arm provides a fixed mechanical anchor at an entry point for lifting an incapacitated person without a rescuer entering. </li></ul><br><ul class="rteBlock defaultList"><li>Australian water authority specifications require a davit base and stainless steel anchor point at each wet well and valve chamber opening. </li></ul><br><ul class="rteBlock defaultList"><li>Safetylyne integrates these into pump station access designs as part of the overall entry and rescue system, edge protection and fall arrest.</li></ul>
WHAT MATERIALS PERFORM BEST IN PUMP STATION ENVIRONMENTS?
<ul class="rteBlock defaultList"><li>Structural aluminium. It does not corrode in humid or chemically active environments, needs no ongoing maintenance, and holds structural integrity for a long lifespan. </li></ul><br><ul class="rteBlock defaultList"><li>Painted steel corrodes in wet environments and requires ongoing intervention that aluminium avoids.</li></ul>
WHAT AUSTRALIAN STANDARDS APPLY TO PUMP STATION ACCESS SYSTEMS?
<p class="rteBlock">Standard access platforms are available through industrial equipment distributors, but water treatment facilities rarely have standard access problems. Tank geometry, chemical exposure, confined space interfaces and structural attachment points typically require a custom engineered solution. Safetylyne designs, fabricates and installs custom access systems for water infrastructure across Australia, with full compliance documentation. Contact our team to discuss your site requirements.</p>
HOW DOES SAFETYLYNE DESIGN AND INSTALL PUMP STATION ACCESS SYSTEMS?
<ul class="rteBlock defaultList"><li>Our safety system design starts with the site - pump station type, depth, structural host, chemical environment and site configuration.</li></ul><br><ul class="rteBlock defaultList"><li>Design covers platform geometry, stair or ladder specification, fall protection and davit integration. Fabrication is in our Australian workshop. Our own team installs, coordinated around the operational schedule. Certification and as-built documentation on handover.</li></ul>
DOES SAFETYLYNE SUPPLY PUMP STATION ACCESS SYSTEMS ACROSS AUSTRALIA?
<ul class="rteBlock defaultList"><li>Safetylyne supplies pump station access systems nationally for water utilities, councils, mining operators, industrial facilities and civil contractors. </li></ul><br><ul class="rteBlock defaultList"><li>Safetylyne teams design, fabricate, install and certify all systems from our Australian workshop, from single pump station platforms to multi-site programmes.</li></ul>


Contact our team or submit your site details for a design consultation.
